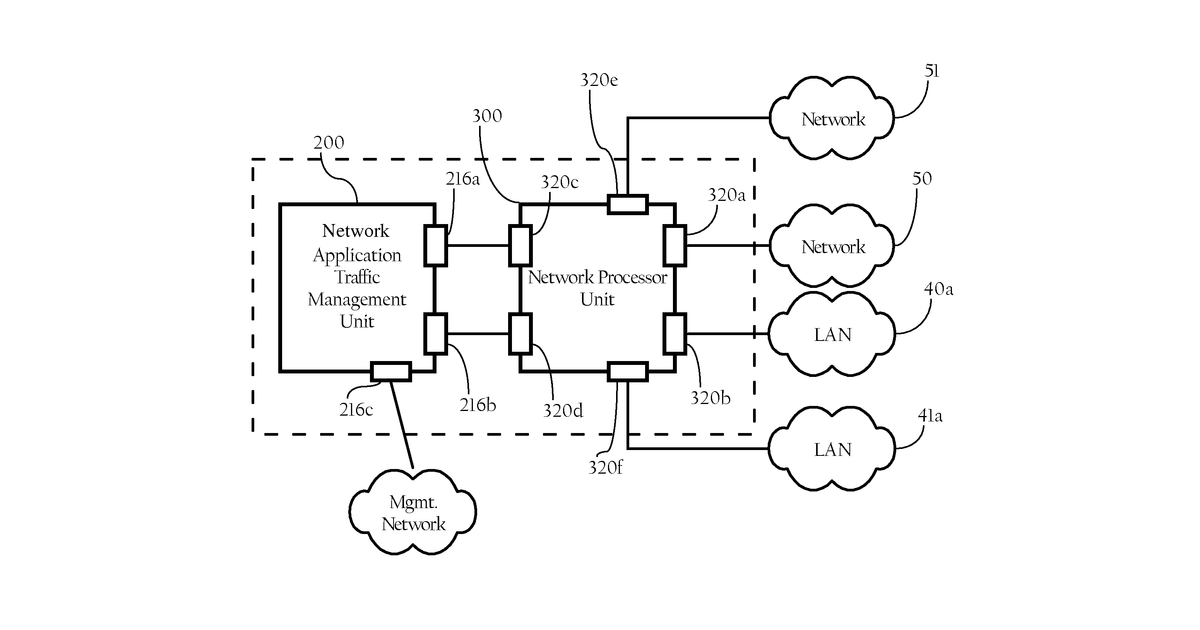

Patent drawing for Data and control plane architecture for network application traffic management device
US 9,419,867 B2
Networking US 9,419,867 B2 Expired

Data and control plane architecture for network application traffic management device

This invention describes a system that manages internet traffic by dividing the work between two components. A fast component quickly applies pre-set rules to all incoming data packets, while a separate, slower component monitors a sample of those packets. If the monitoring component detects a need for adjustment, it updates the rules for the fast component, which initially uses a default rule and can apply specific policies to individual data flows using identifiers.

Why it matters: Filed before Software-Defined Networking (SDN) became widespread. The architecture's core concept of a separate control plane dynamically adjusting a data plane for traffic management is now a foundational principle of modern network design, enabled by advancements in software and hardware.

Status
ExpiredProtection ended and was never renewed
How hard to build
SpecializedNetwork processing unit, complex software logic
