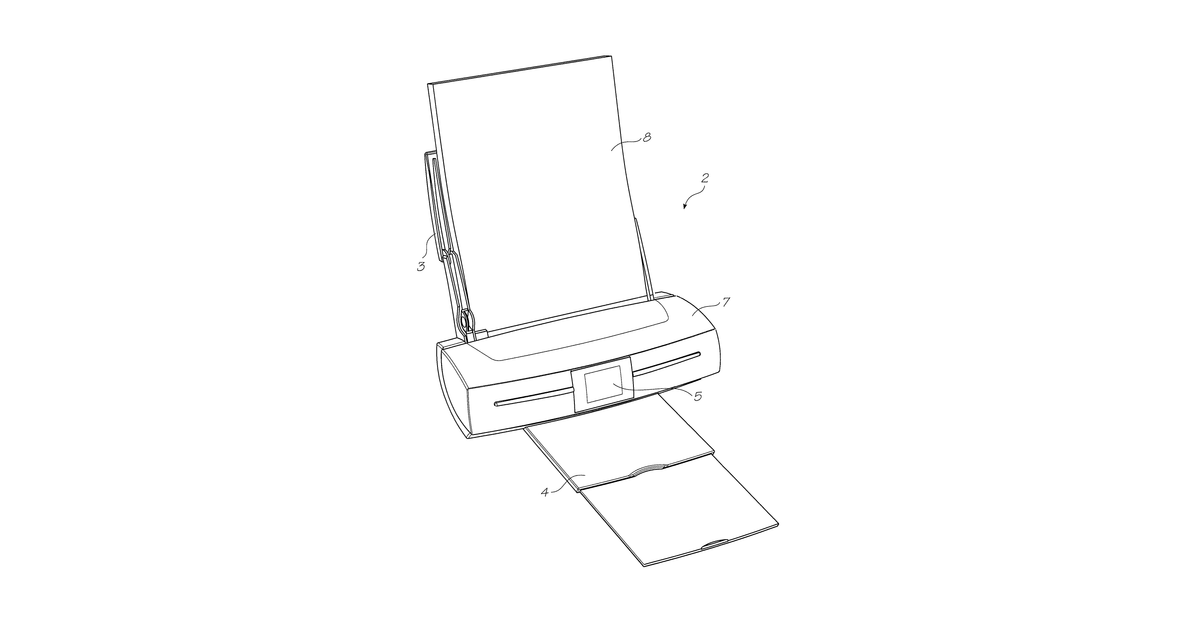

Printhead assembly with a thermosetting adhesive film for attaching printhead integrated circuitry

This invention describes a long, single-pass printhead made from a plastic body that channels ink to several small chips. Each chip has many tiny nozzles for ejecting ink. A special heat-activated adhesive film attaches these chips to the plastic body, with microscopic grooves on the chips drawing the adhesive in to create a perfect seal for the ink channels. The film itself can have precisely drilled holes to align with the ink paths.

Why it matters: Since 2008, advancements in micro-fabrication and laser processing have made creating the precise trenches and laser-drilled film holes more efficient and reliable, potentially lowering manufacturing barriers.

Status: ExpiredProtection ended and was never renewed
How hard to build: SpecializedCustom MEMS silicon, precision molding, specialized bonding
