Display system for a viewing optic

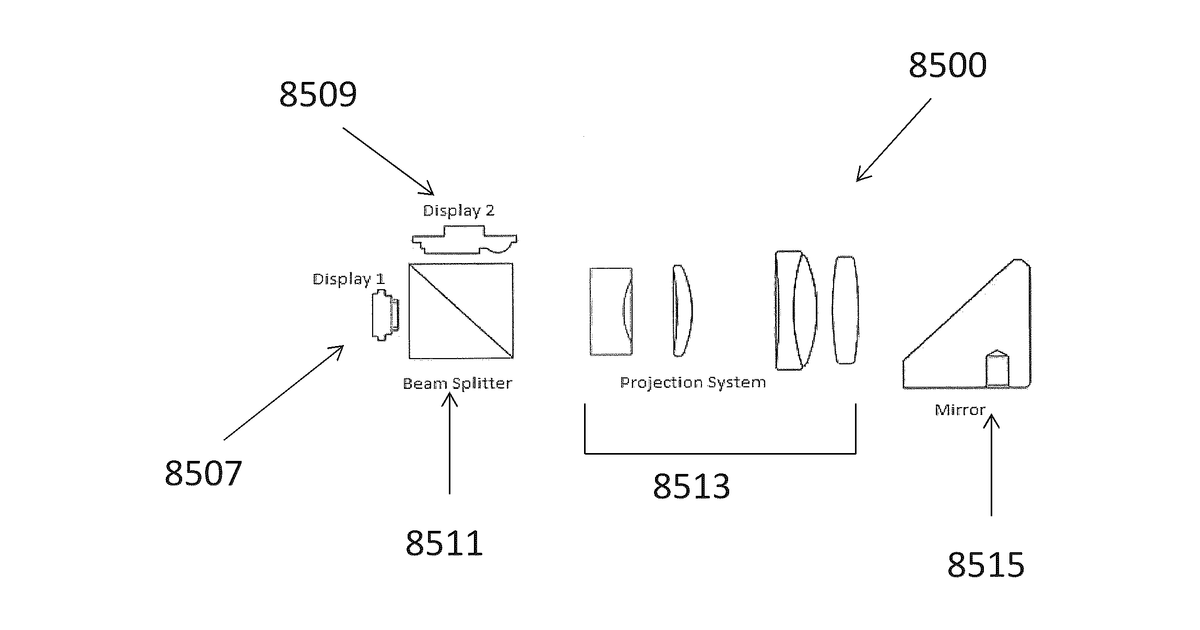

A display system for a viewing optic uses two separate, small screens positioned at a right angle to each other. One of the images generated by these screens is then optically combined with the other using a special mirror, allowing both images to be seen simultaneously, overlaid within the optic. The claims specify a second combining mirror and the placement of one screen relative to it.

Why it matters: The core optical and display challenges remain similar since 2024. Miniaturization, power efficiency, and optical clarity are still key hurdles for such systems.

Status: Not in forceListed as no longer active. The specific reason is not in the record we hold.
How hard to build: ModerateActive displays, beam combiners, precise optical alignment
