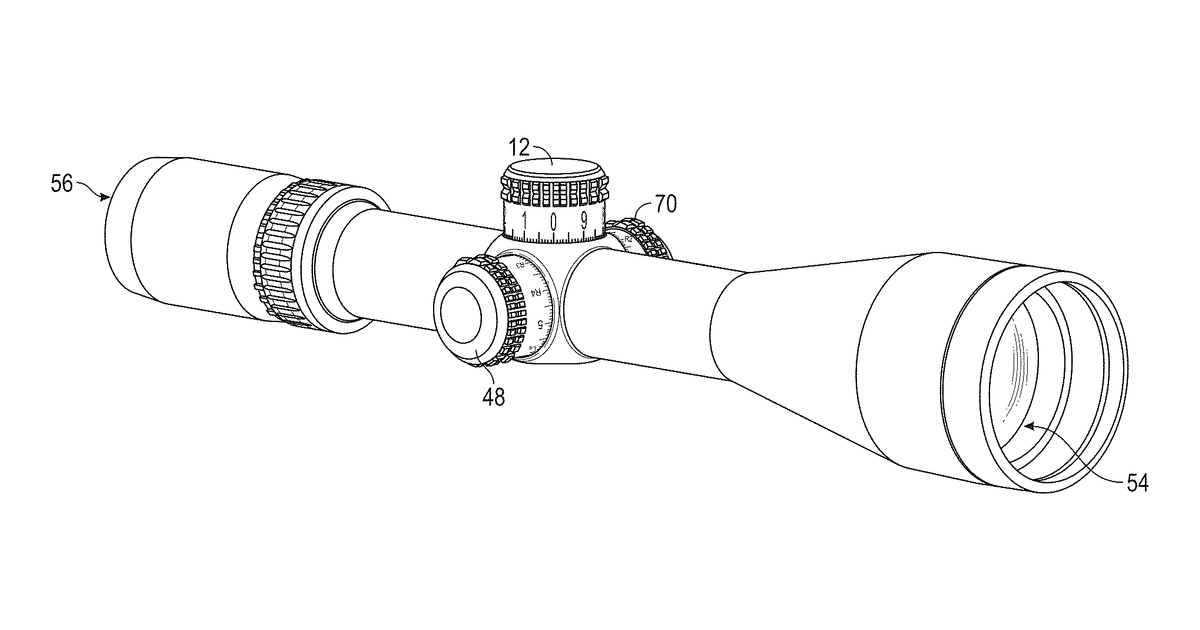

Viewing optic with an integrated display system

This invention describes a type of scope, like a rifle scope or binoculars, that lets you see both the real world and digital images at the same time. It works by using a special mirror, called a beam combiner, placed inside the scope's optical path. This mirror projects images from a display directly into your view, making them appear in focus with the scene you're looking at. The claims specifically place this mirror closer to the front lens and beneath the scope's elevation adjustment knob.

Why it matters: Since 2023, continued advancements in compact, high-resolution micro-displays and efficient projection optics have made integrating digital information into optical paths more feasible. This allows for clearer, less intrusive digital overlays within traditional viewing optics.

Status: Not in forceListed as no longer active. The specific reason is not in the record we hold.
How hard to build: SpecializedPrecision optics, display integration, custom housing.
