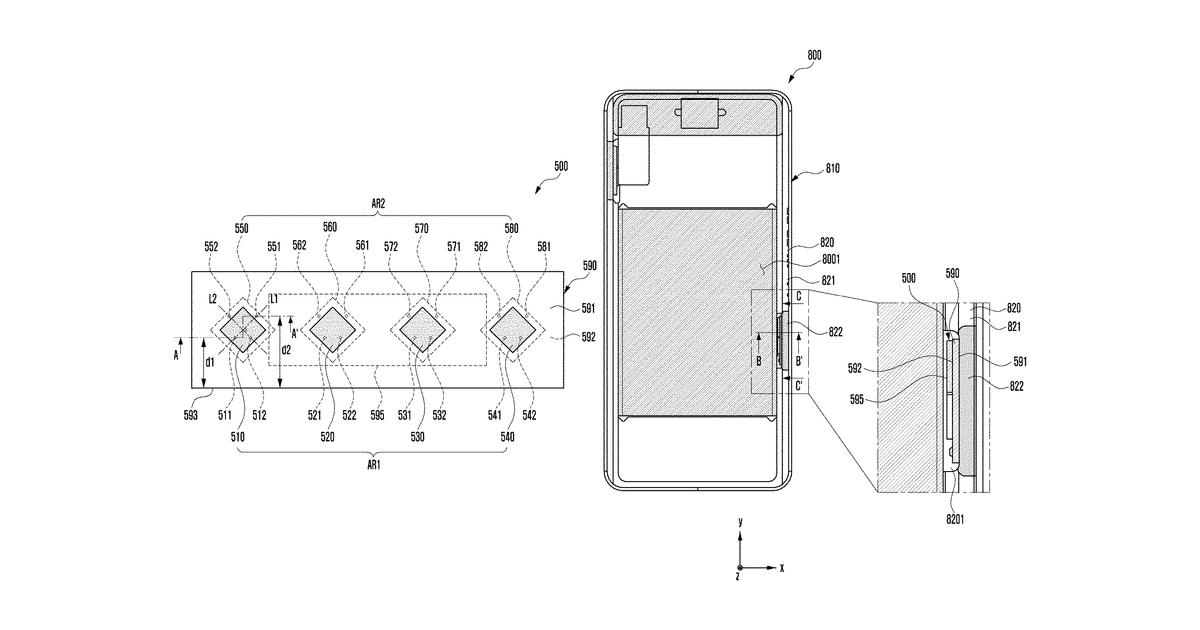

Dual band antenna and electronic device including the same

This is an electronic device, such as a smartphone, that includes a specialized antenna system. The antenna is built on a circuit board inside the device's housing, featuring two distinct conductive patches. Each patch is designed to handle different wireless frequency bands, allowing the device to communicate across a wide range of signals, potentially up to 100 GHz, and with specific signal polarizations.

Why it matters: Filed before the full rollout of Wi-Fi 7 and the broader push for millimeter-wave applications beyond 5G. The antenna's claimed ability to operate up to 100 GHz with specific polarization control is increasingly relevant for emerging high-speed wireless standards and future device integration.

Status: Not in forceListed as no longer active. The specific reason is not in the record we hold.
How hard to build: SpecializedCustom PCB, antenna geometry, RF circuit integration
