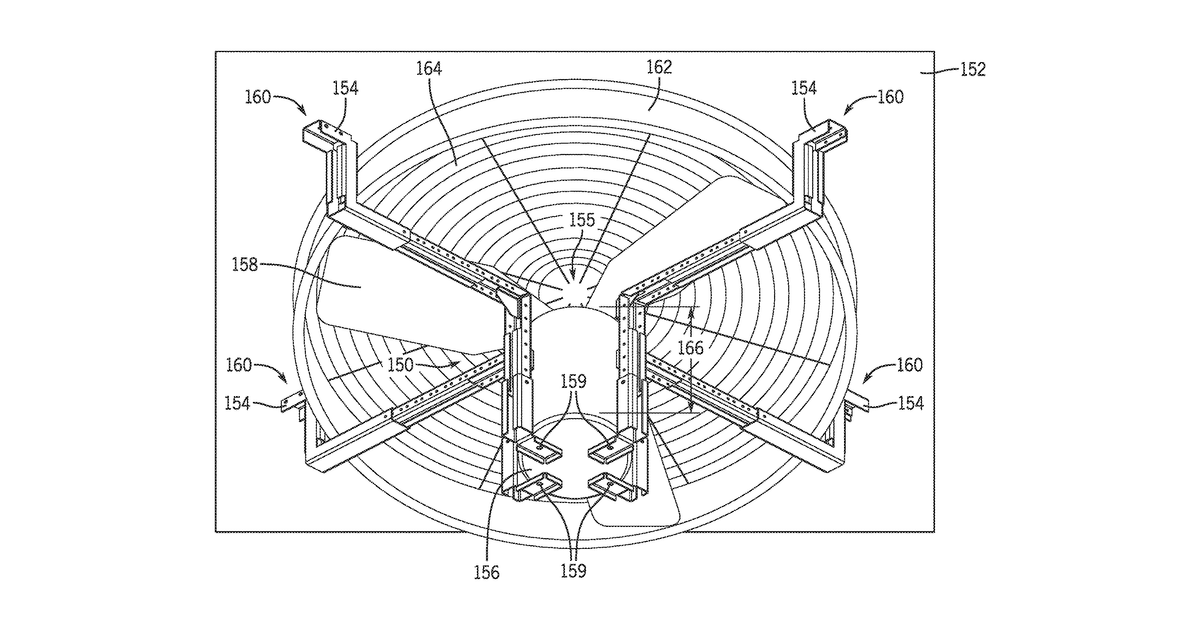

Motor mount for HVAC system

This invention describes an adjustable support system for mounting a fan inside an HVAC unit. Each support uses three frame pieces that slide against each other, allowing the mount to change its size and shape. This adjustability helps it fit different mounting points on the HVAC unit and accommodate various fan motor diameters.

Why it matters: The increasing diversity in HVAC unit designs and fan motor sizes since 2019 has amplified the need for highly adaptable mounting solutions. This design could reduce inventory and simplify field installations by accommodating a wider range of configurations.

Status: Not in forceListed as no longer active. The specific reason is not in the record we hold.
How hard to build: ModerateCustom sliding frame members, robust mechanical design
