Assembly process for automated footwear platform

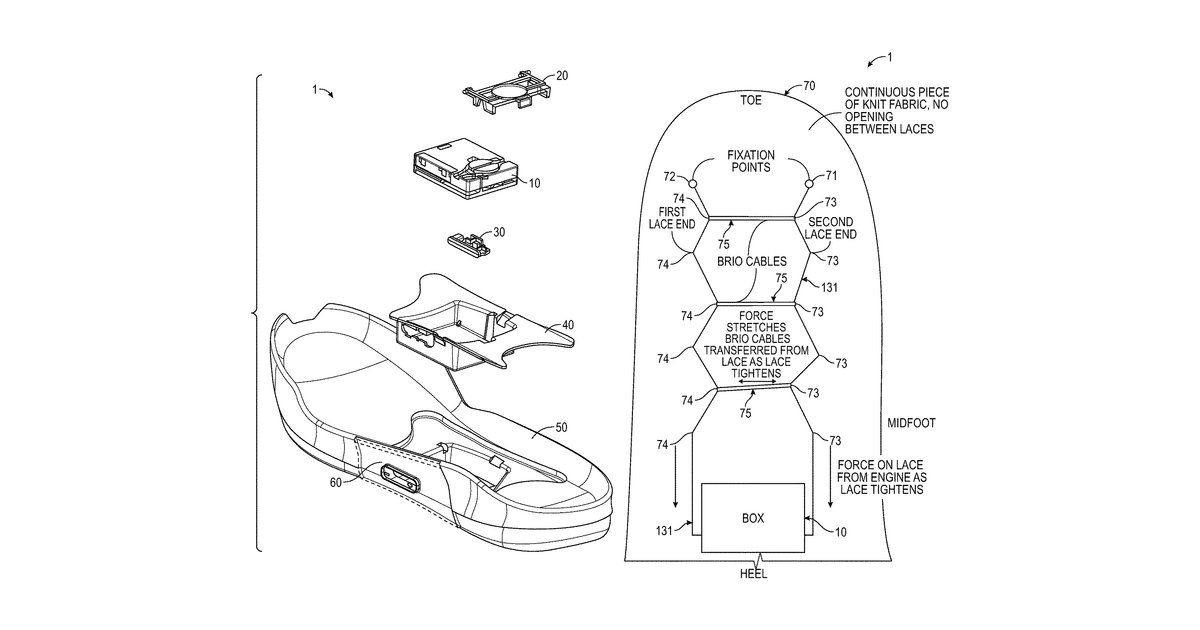

This describes a specific way to assemble a shoe with an automatic lacing system. It involves preparing the shoe's top part by routing a lace cable through guides, then attaching this to a mid-sole plate, and finally inserting a lacing engine. The engine's spool then receives a loop of the lace, specifically into a groove on its surface.

Why it matters: Advancements in robotics since 2017 could significantly automate the detailed lace routing and positioning steps described. Miniaturized motor technology also makes the lacing engine itself more practical for footwear.

Status: ExpiredProtection ended and was never renewed
How hard to build: ModerateLacing engine, custom mid-sole, lace routing.
